Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Microchip Technology |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | CMOS, Push-Pull, Rail-to-Rail, TTL |
| Voltage – Supply, Single/Dual (±) | 1.6V ~ 5.5V |
| Voltage – Input Offset (Max) | 7mV @ 5.5V |
| Current – Input Bias (Max) | 1pA @ 5.5V |
| Current – Output (Typ) | 30mA |
| Current – Quiescent (Max) | 1µA |
| CMRR, PSRR (Typ) | 70dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 8µs |
| Hysteresis | 6.5mV |
| Operating Temperature | -40°C ~ 125°C |

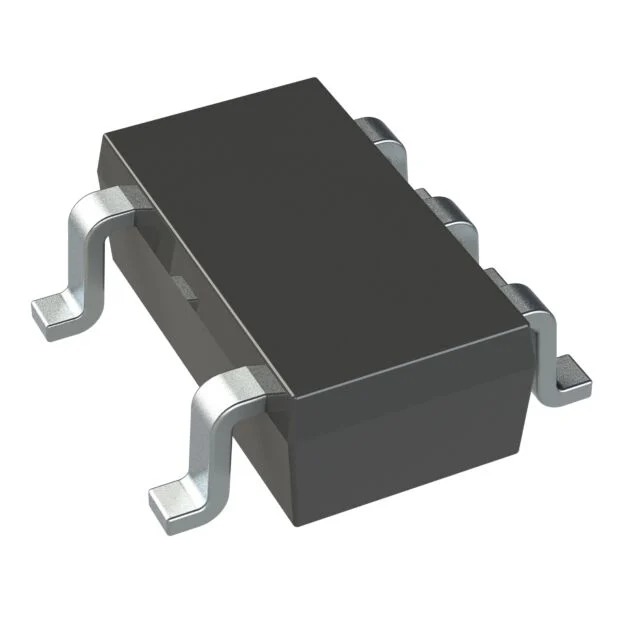

| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | MCP6541 |
