Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Microchip Technology |
| Series | DSC1001 |
| Packaging | Strip |
| Part Status | Active |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 25 MHz |
| Function | Standby (Power Down) |
| Output | CMOS |
| Voltage – Supply | 1.7V ~ 3.6V |
| Frequency Stability | ±10ppm |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 8mA |
| Ratings | AEC-Q100 |
| Mounting Type | Surface Mount |

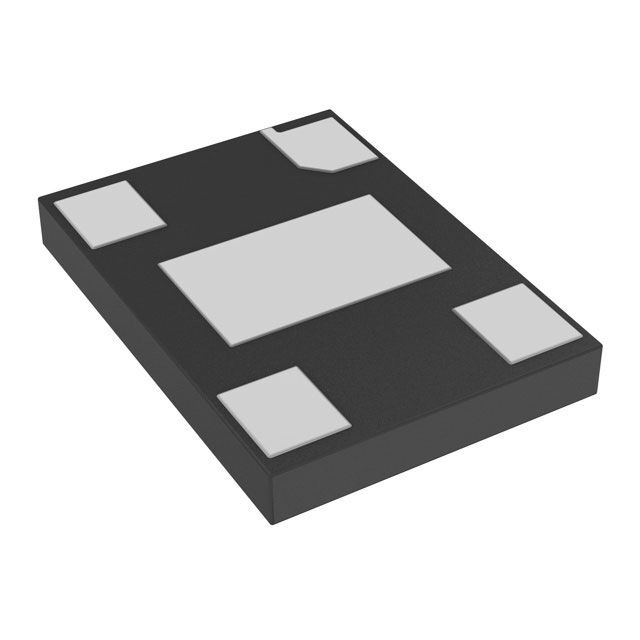

| Package / Case | 4-VDFN Exposed Pad |
| Supplier Device Package | 4-DFN (7×5) |
| Size / Dimension | 0.276″ L x 0.197″ W (7.00mm x 5.00mm) |
| Height – Seated (Max) | 0.035″ (0.90mm) |
| Current – Supply (Disable) (Max) | 15µA |
