Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Microchip Technology |
| Series | DSA61XXB |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 32.768 kHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage – Supply | 1.71V ~ 3.63V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 3mA (Typ) |
| Ratings | AEC-Q100 |
| Mounting Type | Surface Mount |

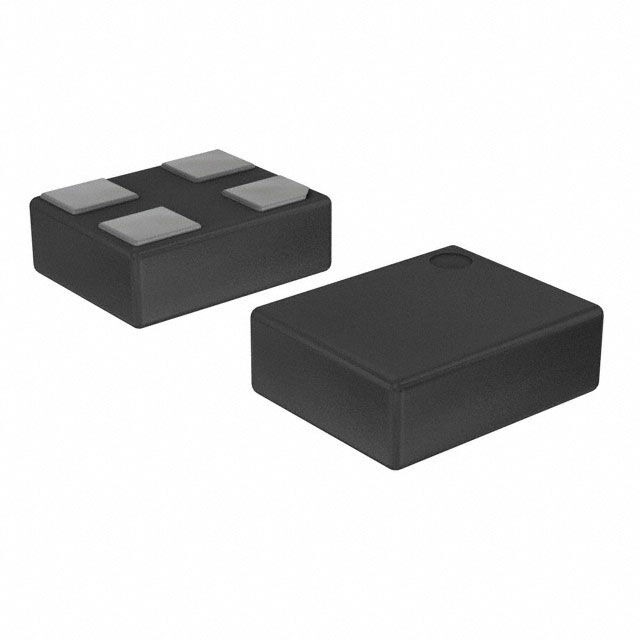

| Package / Case | 4-VLGA |
| Supplier Device Package | 4-VLGA (2.5×2) |
| Size / Dimension | 0.098″ L x 0.079″ W (2.50mm x 2.00mm) |
| Height – Seated (Max) | 0.035″ (0.89mm) |
| Current – Supply (Disable) (Max) | – |
