Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | KYOCERA AVX |
| Series | RPF |
| Packaging | Cut Tape (CT), Tape & Box (TB) |
| Part Status | Active |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage – Rated | 63 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | – |
| Applications | General Purpose |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Lead Spacing | 0.197″ (5.00mm) |
| Size / Dimension | 0.394″ Dia (10.00mm) |
| Height – Seated (Max) | 0.748″ (19.00mm) |
| Surface Mount Land Size | – |
| Mounting Type | Through Hole |

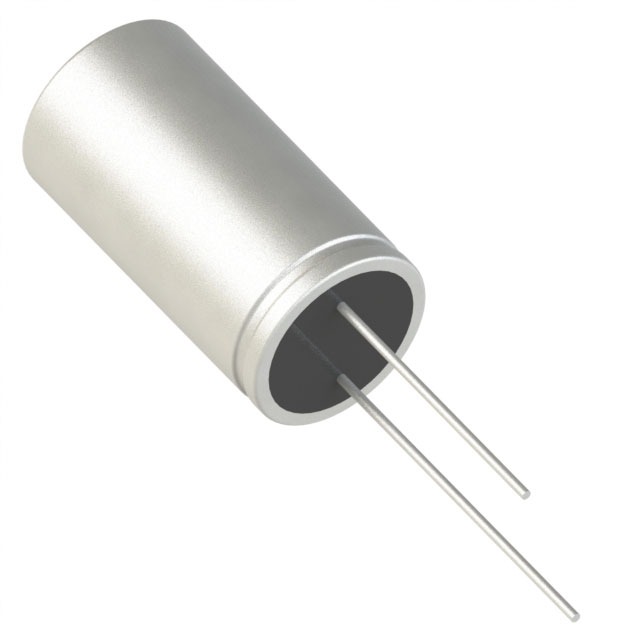

| Package / Case | Radial, Can |
