Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

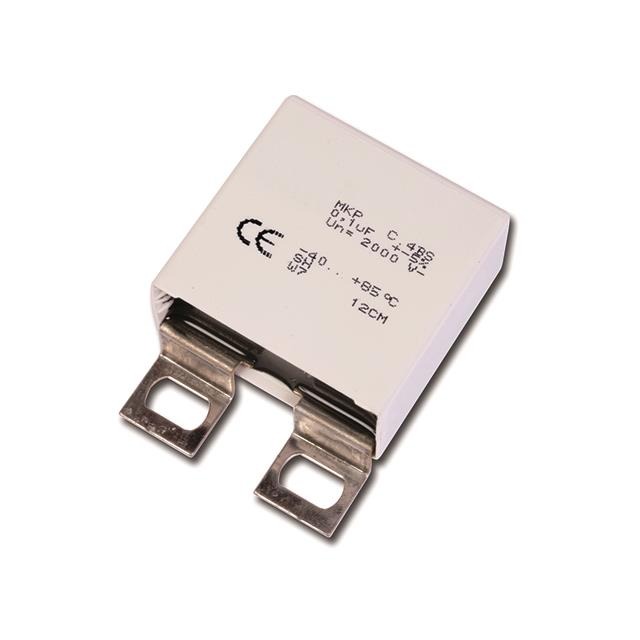

| Mfr | KEMET |
| Series | C4BS |
| Packaging | Box |
| Part Status | Active |
| Capacitance | 0.1 µF |
| Tolerance | ±5% |
| Voltage Rating – AC | 750V |
| Voltage Rating – DC | 3000V (3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 17.3 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.634″ L x 0.787″ W (41.50mm x 20.00mm) |
| Height – Seated (Max) | 1.583″ (40.20mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.004″ (25.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching; Snubber |
| Ratings | – |
| Features | – |
