Açıklama

ÖZELLİK	AÇIKLAMA

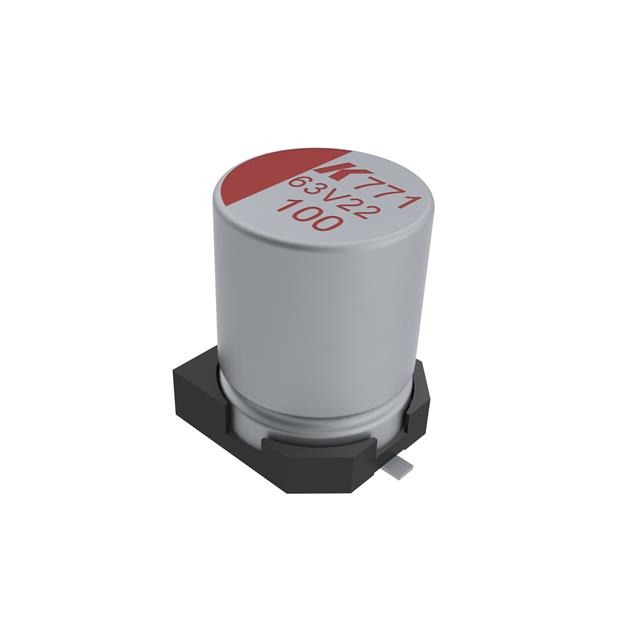

Manufacturer	KEMET
Series	A771
Packaging	Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Part Status	Active
Type	Polymer
Capacitance	100 µF
Tolerance	±20%
Voltage – Rated	63 V
ESR (Equivalent Series Resistance)	18mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	AEC-Q200
Applications	Automotive
Features	–
Ripple Current @ Low Frequency	135 mA @ 120 Hz
Ripple Current @ High Frequency	2.7 A @ 100 kHz
Lead Spacing	–
Size / Dimension	0.394″ Dia (10.00mm)
Height – Seated (Max)	0.500″ (12.70mm)
Surface Mount Land Size	0.406″ L x 0.406″ W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can – SMD
