Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Jauch Quartz |

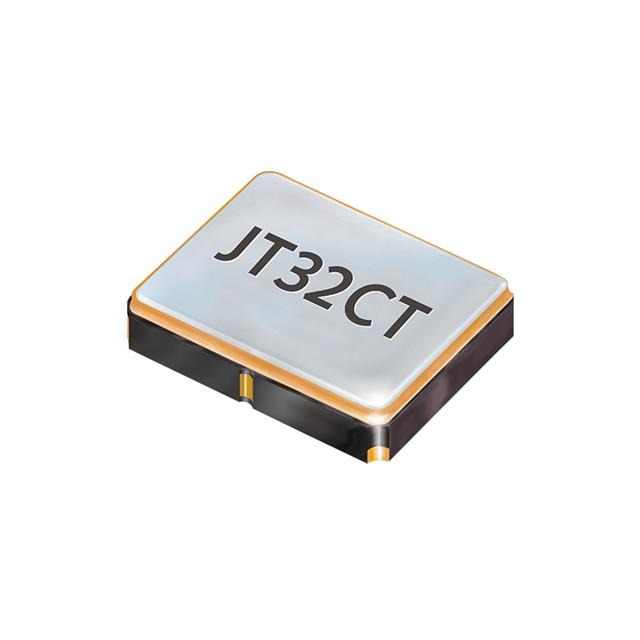

| Series | JT32CT |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | TCXO |
| Frequency | 40 MHz |
| Function | Standby (Power Down) |
| Output | HCMOS |
| Voltage – Supply | 3.3V |
| Frequency Stability | ±2.5ppm |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 7mA |
| Ratings | – |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126″ L x 0.098″ W (3.20mm x 2.50mm) |
| Height – Seated (Max) | 0.039″ (1.00mm) |
| Current – Supply (Disable) (Max) | 10µA |
