Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Jauch Quartz |

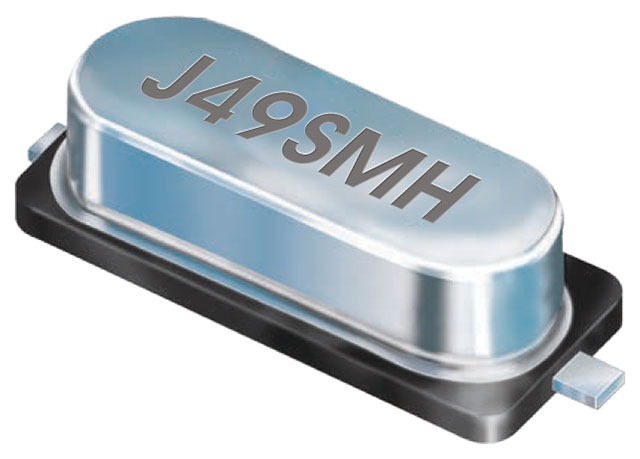

| Series | J49SMH |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | MHz Crystal |
| Frequency | 8 MHz |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 30pF |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | – |
| Mounting Type | Surface Mount |
| Package / Case | HC-49/US |
| Size / Dimension | 0.461″ L x 0.189″ W (11.70mm x 4.80mm) |
| Height – Seated (Max) | 0.157″ (4.00mm) |
