Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | IXYS Integrated Circuits Division |
| Series | LBA, OptoMOS® |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO + SPST-NC (1 Form A and B) |
| Output Type | AC, DC |
| Voltage – Input | 1.2VDC |
| Voltage – Load | 0 V ~ 60 V |
| Load Current | 1 A |
| On-State Resistance (Max) | 600 mOhms |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |

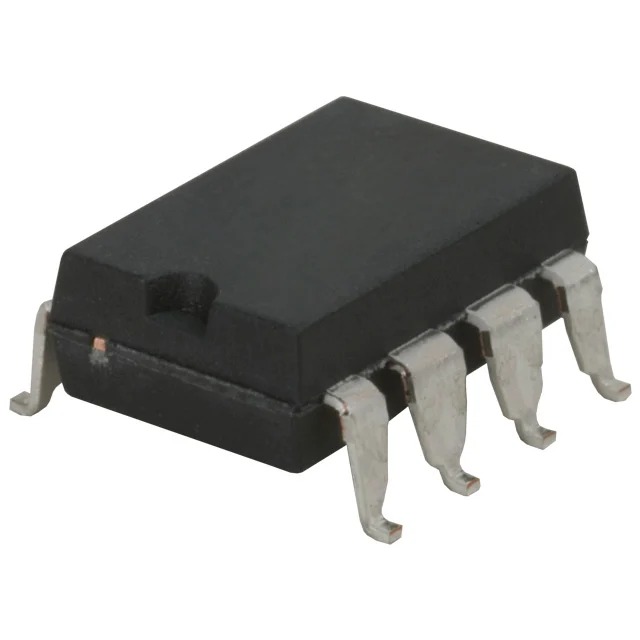

| Package / Case | 8-SMD (0.300″, 7.62mm) |
| Supplier Device Package | 8-SMD |
| Approval Agency | CSA, TUV, UL |
| Grade | – |
| Qualification | – |
| Base Product Number | LBA710 |
