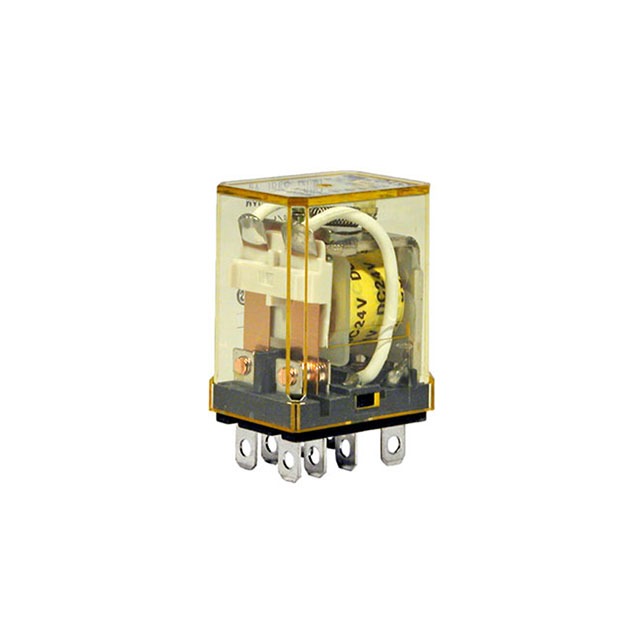

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | IDEC |
| Series | RH |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC, 30VDC – Max |
| Load – Max Switching | 2400VA, 300W |
| Coil Current | 37 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator |
| Termination Style | Plug In, Quick Connect – 0.187″ (4.7mm) |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CE, CSA, cURus, TUV |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 650 Ohms |
| Base Product Number | RH2B-U |
