| ÖZELLİK | AÇIKLAMA |
|---|---|

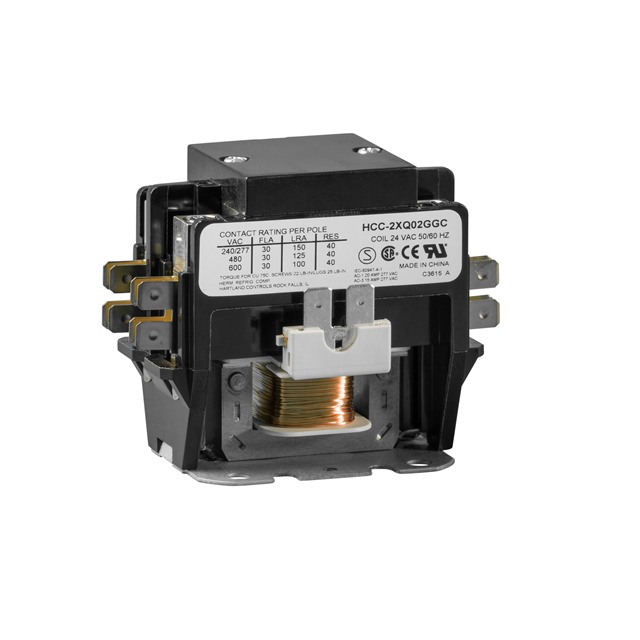

| Manufacturer | Hartland Controls/Littelfuse |
| Series | HCC |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 600VAC – Max |
| Termination Style | Screw Terminal, Quick Connect – 0.250″ (6.3mm) |
| Operating Temperature | -40°C ~ 65°C |
| Must Operate Voltage | 18 VAC |
| Must Release Voltage | 6 VAC |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
