Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

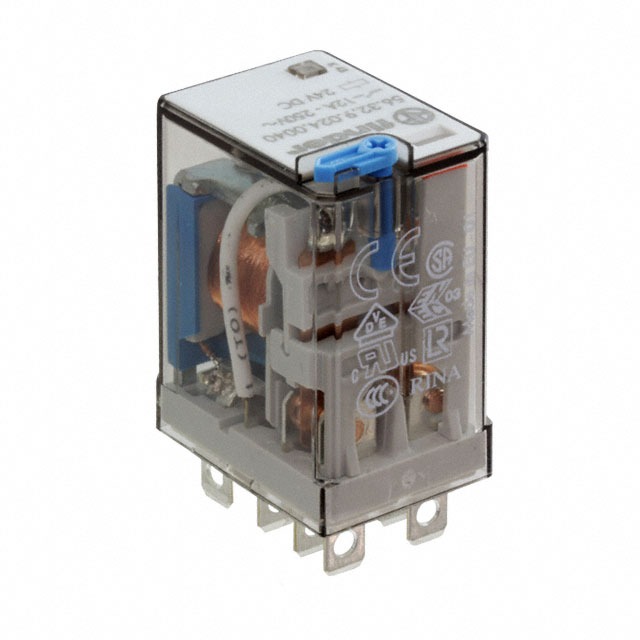

| Mfr | Finder Relays, Inc. |
| Series | 56 |
| Packaging | Bulk |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 400VAC – Max |
| Load – Max Switching | 4800VA |
| Coil Current | 40 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Test Button |
| Termination Style | Plug In, Quick Connect – 0.187″ (4.7mm) |
| Seal Rating | – |
| Coil Insulation | – |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 9 ms |
| Release Time | 6 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 600 Ohms |
| Base Product Number | 56.32.9 |
