Açıklama

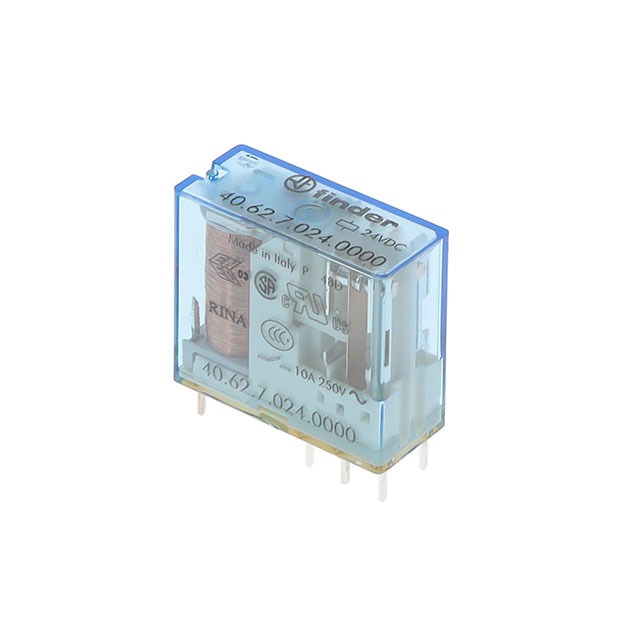

| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Finder Relays, Inc. |
| Series | 40 |
| Packaging | Box |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 400VAC – Max |
| Load – Max Switching | 4000VA |
| Coil Current | 21 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | Plug In |
| Seal Rating | Sealed – Flux Protection |
| Coil Insulation | – |
| Must Operate Voltage | 17.5 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 12 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CCC, CSA, cURus, EAC, ENEC, RINA |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 1.15 kOhms |
| Base Product Number | 40.62.7 |
