Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

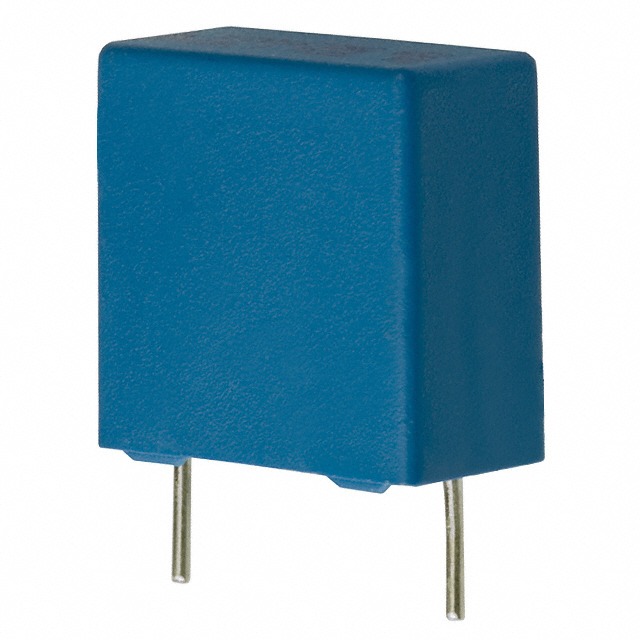

| Mfr | EPCOS – TDK Electronics |
| Series | B81123* – Y1 |
| Packaging | Tape & Reel (TR), Cut Tape (CT) |
| Part Status | Active |
| Capacitance | 1000 pF |
| Tolerance | ±20% |
| Voltage Rating – AC | 500V |
| Voltage Rating – DC | – |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709″ L x 0.197″ W (18.00mm x 5.00mm) |
| Height – Seated (Max) | 0.413″ (10.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591″ (15.00mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, Y1 |
| Features | 85C/85% Humidity |
