Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

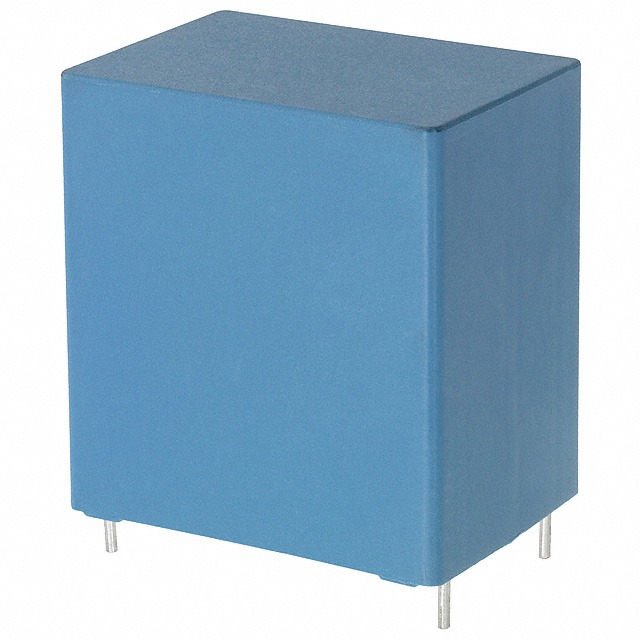

| Mfr | EPCOS – TDK Electronics |
| Series | B3277* – MKP DC-Link |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 12 µF |
| Tolerance | ±5% |
| Voltage Rating – AC | – |
| Voltage Rating – DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 10.2 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial – 4 Leads |
| Size / Dimension | 1.654″ L x 0.787″ W (42.00mm x 20.00mm) |
| Height – Seated (Max) | 1.555″ (39.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476″ (37.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | – |
| Features | Long Life |
| Base Product Number | B32776G |
