Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

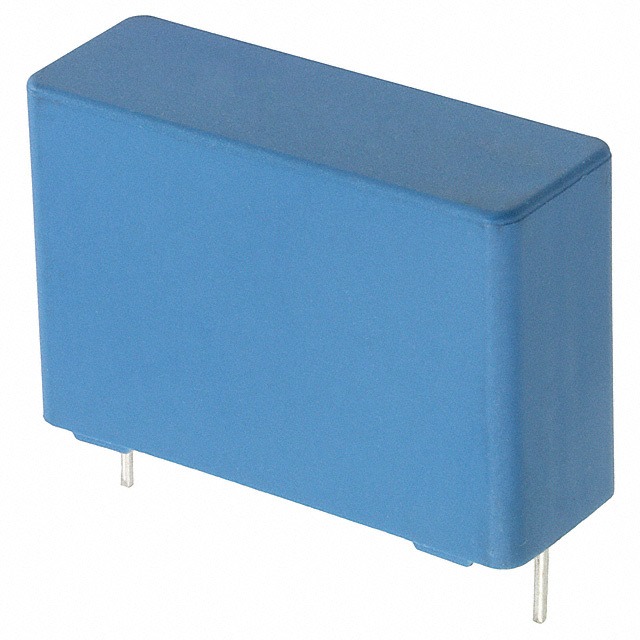

| Mfr | EPCOS – TDK Electronics |
| Series | B3277* – MKP DC-Link |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 1.5 µF |
| Tolerance | ±10% |
| Voltage Rating – AC | – |
| Voltage Rating – DC | 1300V (1.3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 31.3 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240″ L x 0.492″ W (31.50mm x 12.50mm) |
| Height – Seated (Max) | 0.846″ (21.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083″ (27.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | – |
| Features | Long Life |
| Base Product Number | B32774D |
