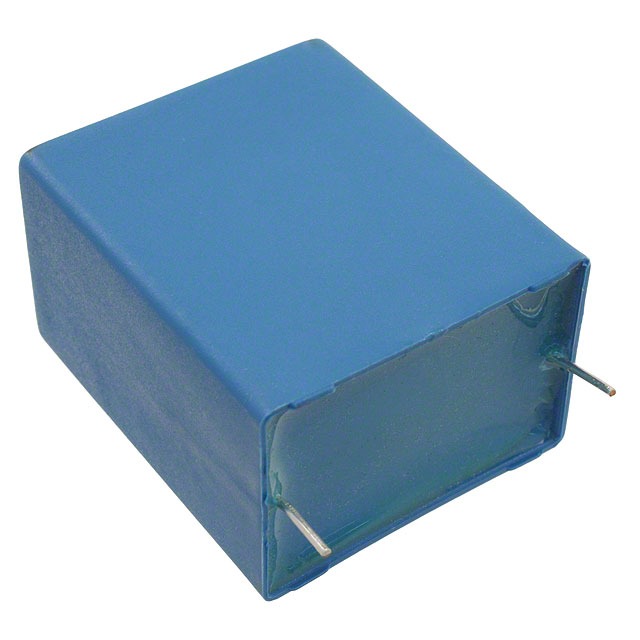

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | EPCOS – TDK Electronics |
| Series | B32714H |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±10% |
| Voltage Rating – AC | – |
| Voltage Rating – DC | 500V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 6.1 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240″ L x 0.591″ W (31.50mm x 15.00mm) |
| Height – Seated (Max) | 0.965″ (24.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083″ (27.50mm) |
| Applications | Automotive |
| Ratings | AEC-Q200 |
| Features | Long Life |
