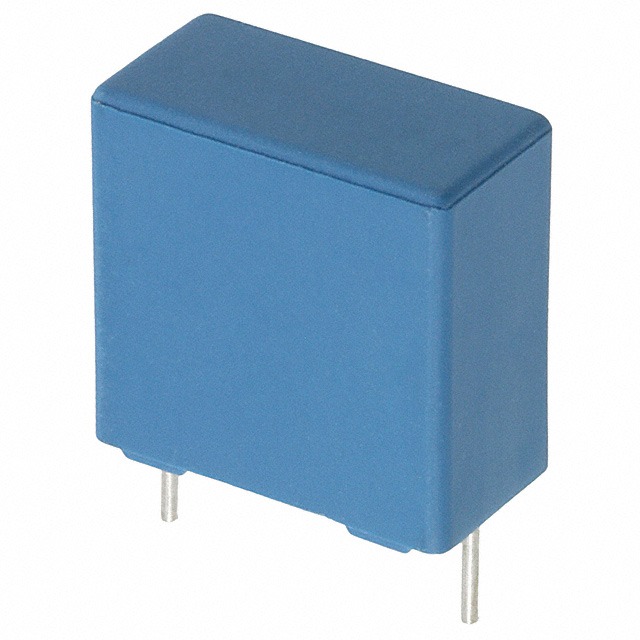

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | EPCOS – TDK Electronics |
| Series | B3267*P* – MKP Power Factor Correction |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 2 µF |
| Tolerance | ±10% |
| Voltage Rating – AC | 160V |
| Voltage Rating – DC | 450V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709″ L x 0.354″ W (18.00mm x 9.00mm) |
| Height – Seated (Max) | 0.689″ (17.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591″ (15.00mm) |
| Applications | Power Factor Correction (PFC) |
| Ratings | AEC-Q200 |
| Features | – |
