Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

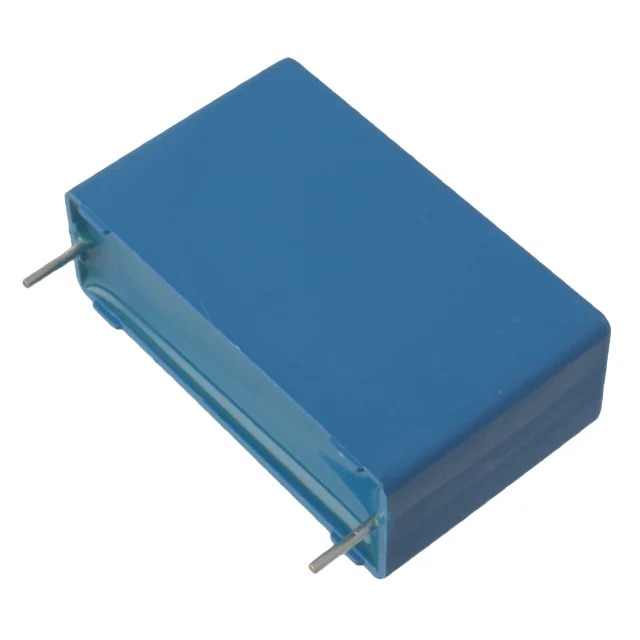

| Mfr | EPCOS – TDK Electronics |
| Series | B3267*L* – MKP High Current |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 10000 pF |
| Tolerance | ±5% |
| Voltage Rating – AC | 700V |
| Voltage Rating – DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709″ L x 0.276″ W (18.00mm x 7.00mm) |
| Height – Seated (Max) | 0.492″ (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591″ (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | – |
| Features | – |
