Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

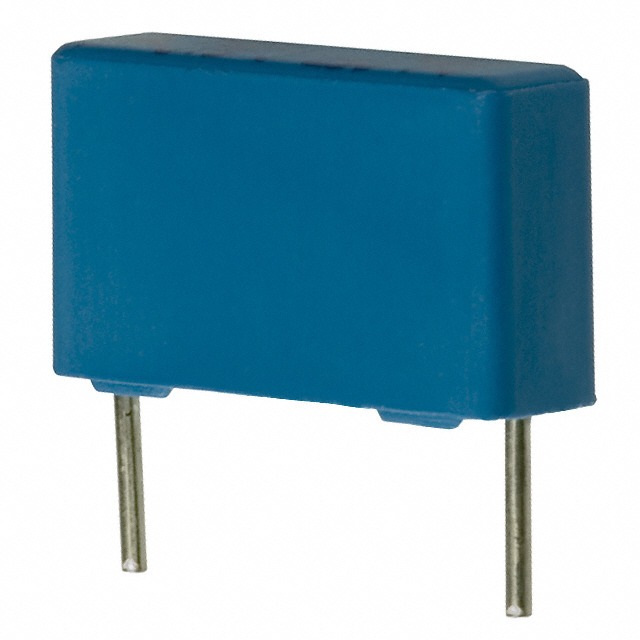

| Mfr | EPCOS – TDK Electronics |
| Series | B3265* – MKP General Purpose |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 0.1 µF |
| Tolerance | ±5% |
| Voltage Rating – AC | 200V |
| Voltage Rating – DC | 400V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709″ L x 0.197″ W (18.00mm x 5.00mm) |
| Height – Seated (Max) | 0.413″ (10.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591″ (15.00mm) |
| Applications | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber |
| Ratings | AEC-Q200 |
| Features | – |
