| ÖZELLİK | AÇIKLAMA |
|---|---|

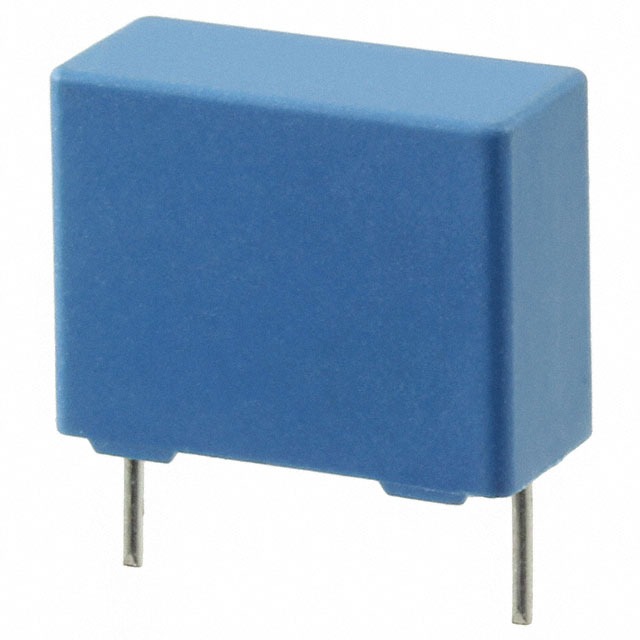

| Mfr | EPCOS – TDK Electronics |
| Series | B3264* – MMKP High Frequency |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 0.047 µF |
| Tolerance | ±5% |
| Voltage Rating – AC | 600V |
| Voltage Rating – DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709″ L x 0.315″ W (18.00mm x 8.00mm) |
| Height – Seated (Max) | 0.551″ (14.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591″ (15.00mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | AEC-Q200 |
| Features | – |
