| ÖZELLİK | AÇIKLAMA |
|---|---|

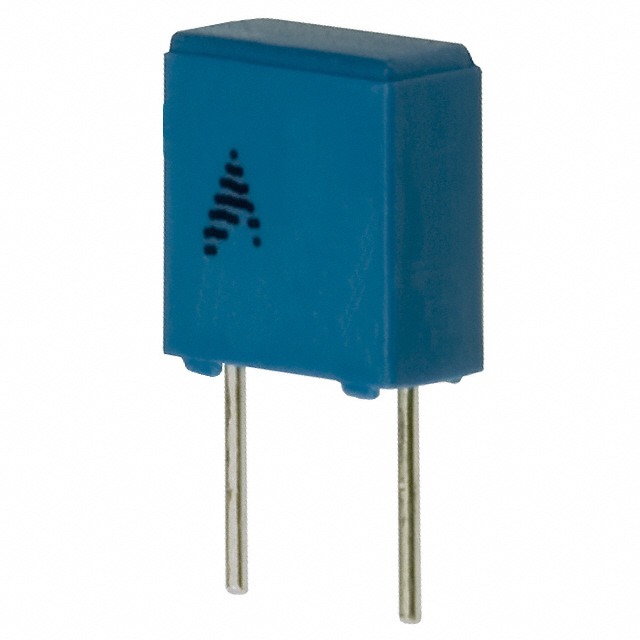

| Mfr | EPCOS – TDK Electronics |
| Series | B3252* – MKT General Purpose |
| Packaging | Cut Tape (CT), Tape & Box (TB) |
| Part Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage Rating – AC | 32V |
| Voltage Rating – DC | 50V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized – Stacked |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.307″ L x 0.307″ W (7.80mm x 7.80mm) |
| Height – Seated (Max) | 0.512″ (13.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197″ (5.00mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200 |
| Features | – |
