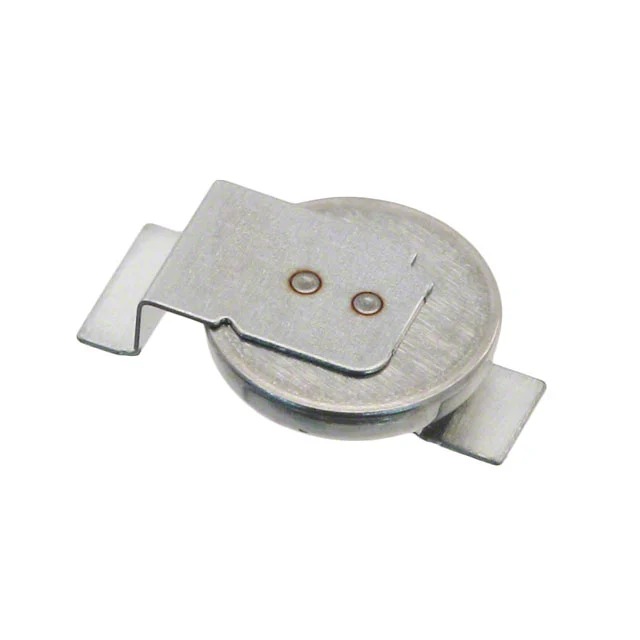

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Elna America |
| Series | DSK |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Not For New Designs |
| Capacitance | 200 mF |
| Tolerance | -20%, +80% |
| Voltage – Rated | 3.3 V |
| ESR (Equivalent Series Resistance) | 200Ohm |
| Lifetime @ Temp. | 1000 Hrs @ 60°C |
| Grade | – |
| Qualification | – |
| Termination | SMD (SMT) Tabs |
| Mounting Type | Surface Mount |
| Package / Case | Coin, Wide Terminals – Opposite Sides |
| Lead Spacing | – |
| Size / Dimension | 0.268″ Dia (6.80mm) |
| Height – Seated (Max) | 0.071″ (1.80mm) |
| Operating Temperature | -10°C ~ 60°C |
