Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | ECS Inc. |

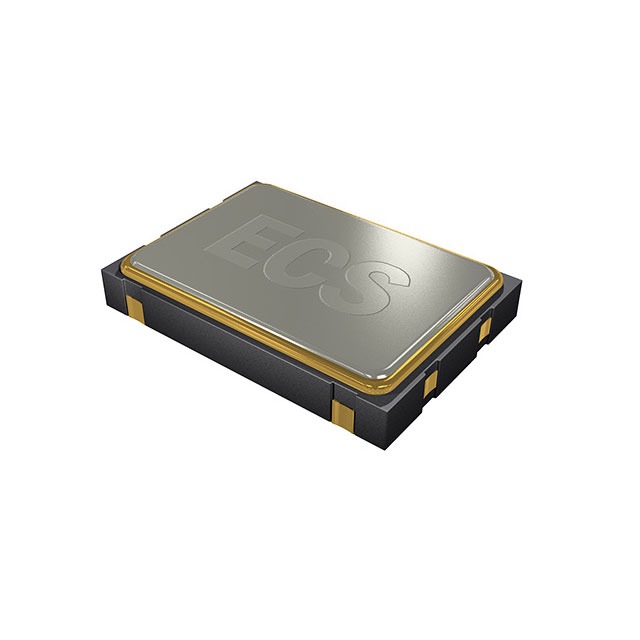

| Series | ECS-5032MV MultiVolt™ |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 10 MHz |
| Function | Enable/Disable |
| Output | HCMOS |
| Voltage – Supply | 1.6V ~ 3.63V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 6mA |
| Ratings | – |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD (5×3.2) |
| Size / Dimension | 0.197″ L x 0.126″ W (5.00mm x 3.20mm) |
| Height – Seated (Max) | 0.051″ (1.30mm) |
| Current – Supply (Disable) (Max) | 10µA |
