Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | ECS Inc. |

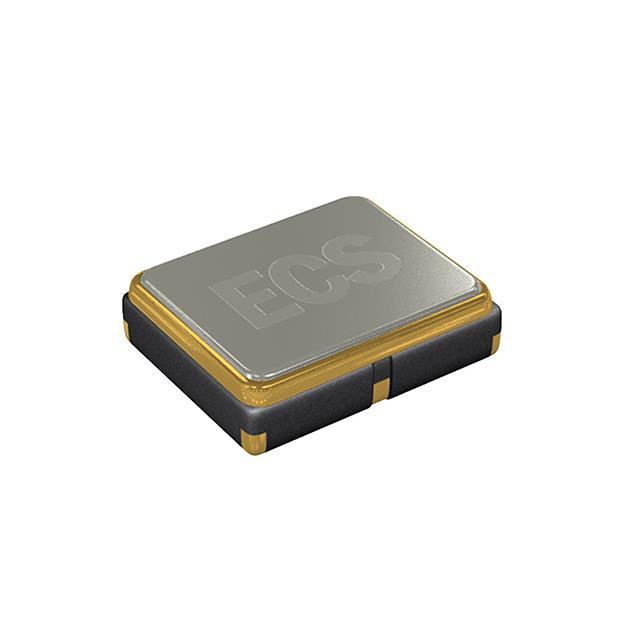

| Series | ECS-2520MVQ MultiVolt™ |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 50 MHz |
| Function | Standby (Power Down) |
| Output | HCMOS |
| Voltage – Supply | 1.6V ~ 3.6V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | – |
| Operating Temperature | -40°C ~ 125°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 12mA |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD (2.5×2) |
| Size / Dimension | 0.098″ L x 0.079″ W (2.50mm x 2.00mm) |
| Height – Seated (Max) | 0.035″ (0.90mm) |
| Current – Supply (Disable) (Max) | 10µA |
