| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | ECS Inc. |
| Series | ECS-100X |
| Packaging | Tube |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 2 MHz |
| Function | – |
| Output | TTL |
| Voltage – Supply | 5V |
| Frequency Stability | ±100ppm |
| Absolute Pull Range (APR) | – |
| Operating Temperature | 0°C ~ 70°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 15mA |
| Ratings | – |
| Mounting Type | Through Hole |

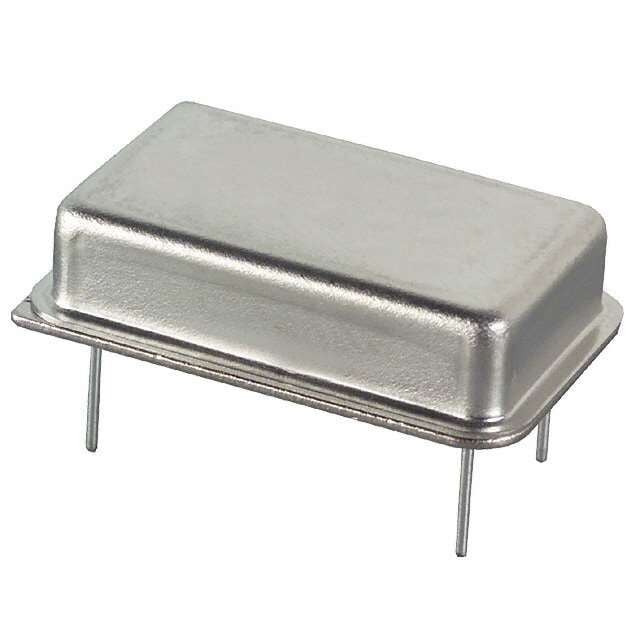

| Package / Case | 14-DIP, 4 Leads (Full Size, Metal Can) |
| Size / Dimension | 0.821″ L x 0.520″ W (20.86mm x 13.20mm) |
| Height – Seated (Max) | 0.200″ (5.08mm) |
| Current – Supply (Disable) (Max) | – |
