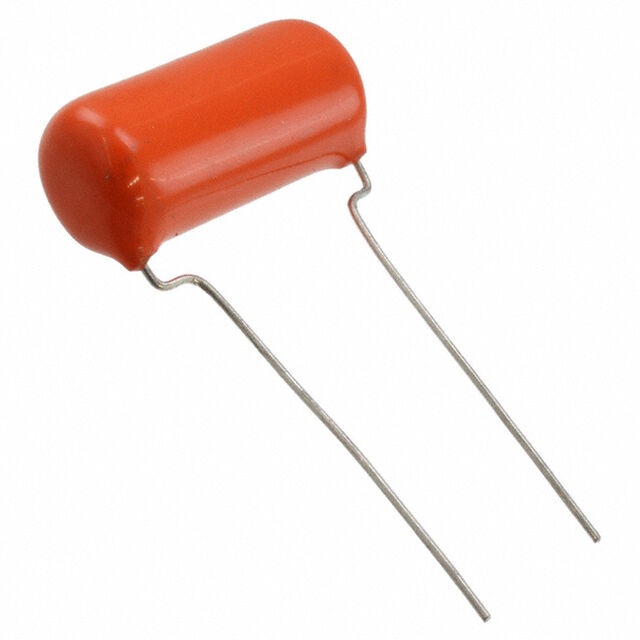

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Cornell Dubilier Knowles |
| Series | Orange Drop® 715P |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 0.1 µF |
| Tolerance | ±5% |
| Voltage Rating – AC | 200V |
| Voltage Rating – DC | 600V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709″ Dia x 1.252″ L (18.00mm x 31.80mm) |
| Height – Seated (Max) | 1.008″ (25.60mm) |
| Termination | PC Pins |
| Lead Spacing | 0.720″ (18.30mm) |
| Applications | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | – |
| Features | – |
