Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

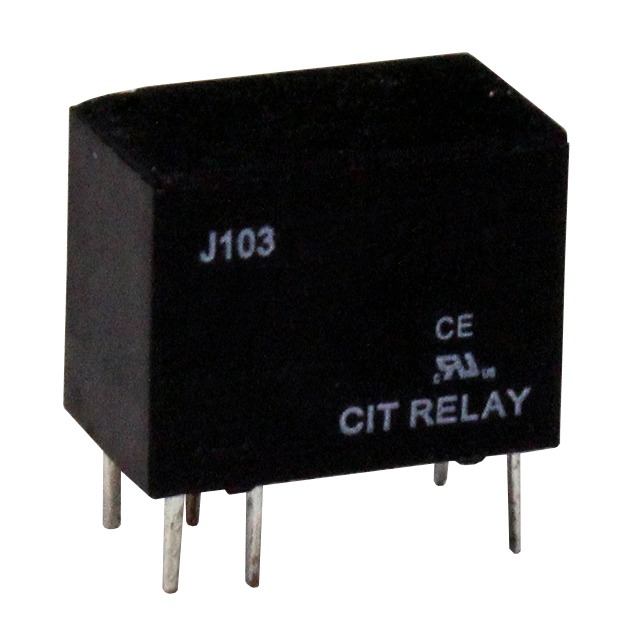

| Manufacturer | CIT Relay and Switch |
| Series | J103 |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 125VAC, 60VDC – Max |
| Load – Max Switching | 250VA, 120W |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Features | – |
| Termination Style | PC Pin |
| Seal Rating | Sealed – Fully |
| Coil Insulation | – |
| Must Operate Voltage | 6.75 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | 4.5 ms |
| Release Time | 1.5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | – |
| Qualification | – |
| Coil Resistance | 540 Ohms |
| Base Product Number | J1031C |
