Açıklama

ÖZELLİK	AÇIKLAMA
Mfr	Chemi-Con
Series	Alchip™- MZA
Packaging	Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Part Status	Active
Capacitance	220 µF
Tolerance	±20%
Voltage – Rated	35 V
ESR (Equivalent Series Resistance)	–
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	300 mA @ 120 Hz
Ripple Current @ High Frequency	600 mA @ 100 kHz
Impedance	160 mOhms
Lead Spacing	–
Size / Dimension	0.315″ Dia (8.00mm)
Height – Seated (Max)	0.413″ (10.50mm)
Surface Mount Land Size	0.327″ L x 0.327″ W (8.30mm x 8.30mm)
Mounting Type	Surface Mount

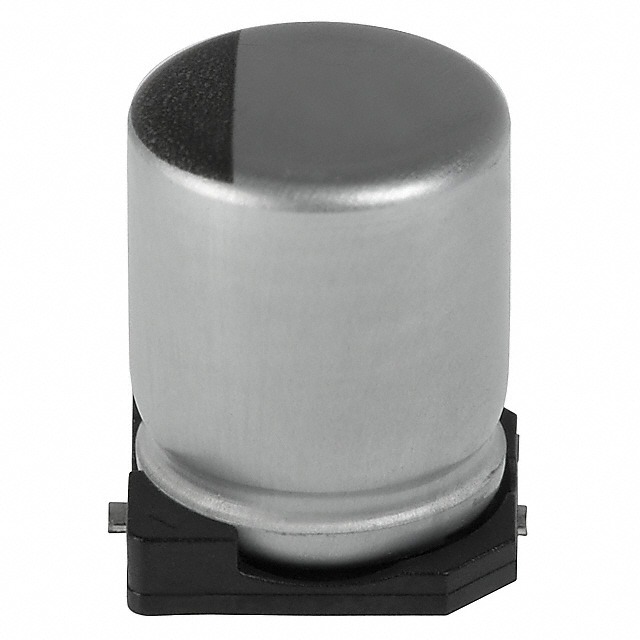

Package / Case	Radial, Can – SMD
