Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 350, 700 |
| Tolerance | ±7.5% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | ±0.003% |
| Resistor-Ratio-Drift | ±0.2ppm/°C |
| Number of Pins | 10 |
| Power Per Element | – |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -40°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |

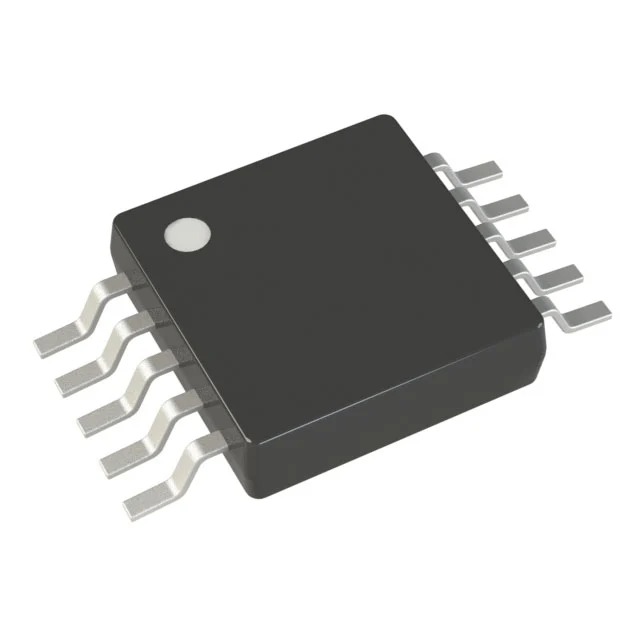

| Package / Case | 10-TFSOP, 10-MSOP (0.118″, 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| Size / Dimension | 0.118″ L x 0.118″ W (3.00mm x 3.00mm) |
| Height – Seated (Max) | 0.043″ (1.10mm) |
| Base Product Number | LT5401 |
