Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Series | UltraFast™ |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | with Latch |
| Number of Elements | 1 |
| Output Type | CMOS, Complementary, Rail-to-Rail, TTL |
| Voltage – Supply, Single/Dual (±) | 2.4V ~ 12V, ±2.4V ~ 6V |
| Voltage – Input Offset (Max) | 5.5mV @ 5V |
| Current – Input Bias (Max) | 5µA @ 5V |
| Current – Output (Typ) | 20mA |
| Current – Quiescent (Max) | 22mA |
| CMRR, PSRR (Typ) | 75dB CMRR, 85dB PSRR |
| Propagation Delay (Max) | 6ns |
| Hysteresis | – |
| Operating Temperature | 0°C ~ 70°C |

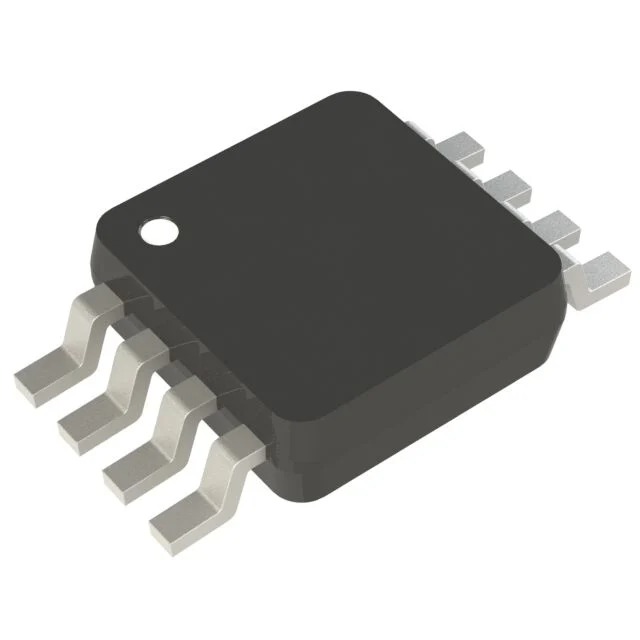

| Package / Case | 8-TSSOP, 8-MSOP (0.118″, 3.00mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MSOP |
| Base Product Number | LT1711 |
