Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Amphenol Aerospace Operations |
| Series | – |
| Packaging | Box |
| Part Status | Active |

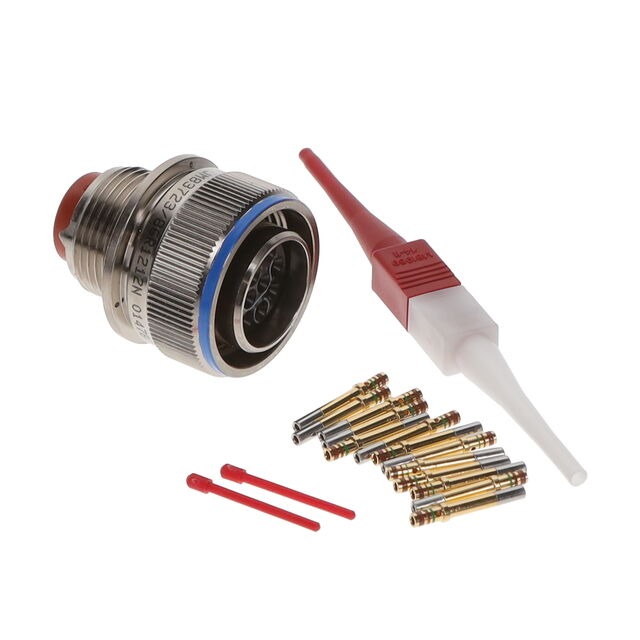

| Connector Type | Plug, Female Sockets |
| Number of Positions | 12 |
| Grade | Military |
| Qualification | MIL-DTL-83723 Series III |
| Shell Size – Insert | 12-12 |
| Shell Size, MIL | – |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | – |
| Termination | Crimp |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Finish | Electroless Nickel |
| Contact Finish – Mating | – |
| Color | Silver |
| Ingress Protection | Environment Resistant |
| Material Flammability Rating | – |
| Features | Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 600VAC |
| Cable Opening | – |
| Operating Temperature | -65°C ~ 200°C |
| Backshell Material, Plating | – |
| Contact Material | – |
| Contact Finish Thickness – Mating | – |
| Insert Material | – |
| Applications | Aviation, Military |
