Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Amphenol Aerospace Operations |
| Series | – |
| Packaging | Bag |
| Part Status | Active |

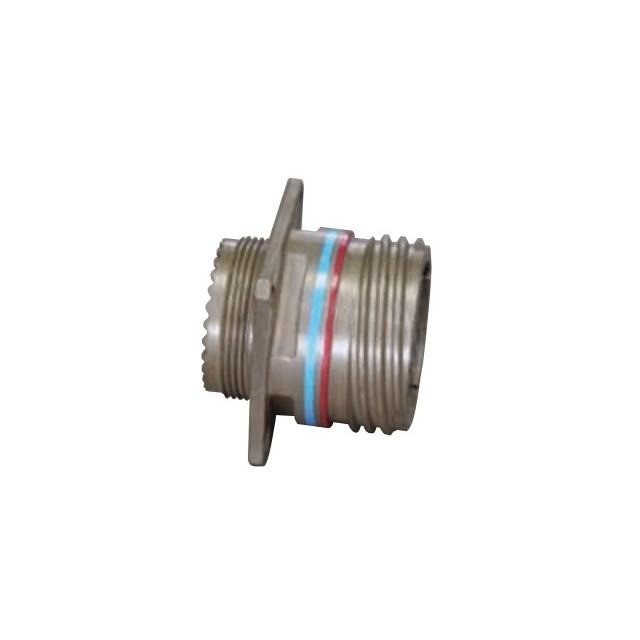

| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 13 |
| Grade | Military |
| Qualification | MIL-DTL-38999 Series III |
| Shell Size – Insert | 11-35 |
| Shell Size, MIL | B |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Crimp |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Finish | Black Zinc Nickel |
| Contact Finish – Mating | Gold |
| Color | Black |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | – |
| Features | – |
| Shielding | Shielded |
| Current Rating (Amps) | 5A |
| Voltage Rating | – |
| Cable Opening | – |
| Operating Temperature | -65°C ~ 175°C |
| Backshell Material, Plating | – |
| Contact Material | Copper Alloy |
| Contact Finish Thickness – Mating | 50.0µin (1.27µm) |
| Insert Material | Thermoplastic |
| Applications | Aerospace, Aviation, Marine, Military |
