Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Amphenol Aerospace Operations |
| Series | 2M |
| Packaging | Bag |
| Part Status | Active |

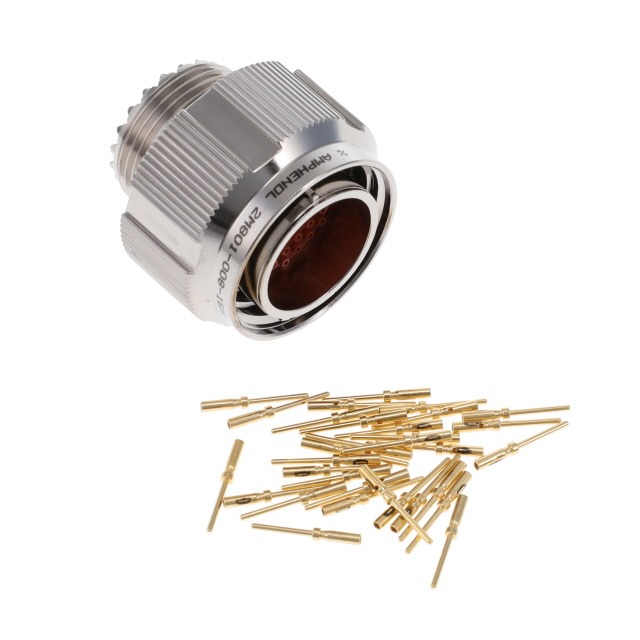

| Connector Type | Plug, Male Pins |
| Number of Positions | 37 |
| Shell Size – Insert | 13-37 |
| Shell Size, MIL | – |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | – |
| Termination | Crimp |
| Fastening Type | Threaded |
| Orientation | B |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Electroless Nickel |
| Contact Finish – Mating | Gold |
| Color | Silver |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | – |
| Features | Coupling Nut |
| Shielding | Shielded |
| Current Rating (Amps) | 5A |
| Voltage Rating | – |
| Cable Opening | – |
| Operating Temperature | -65°C ~ 150°C |
| Backshell Material, Plating | – |
| Contact Material | Copper Alloy |
| Contact Finish Thickness – Mating | 50.0µin (1.27µm) |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Applications | – |
| Base Product Number | 2M801-008 |
