Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | 3PEAK |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT – Open/Closed |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 4.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm (Max) |
| Voltage – Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 85ns, 85ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF |
| Current – Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -65dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Mounting Type | Surface Mount |

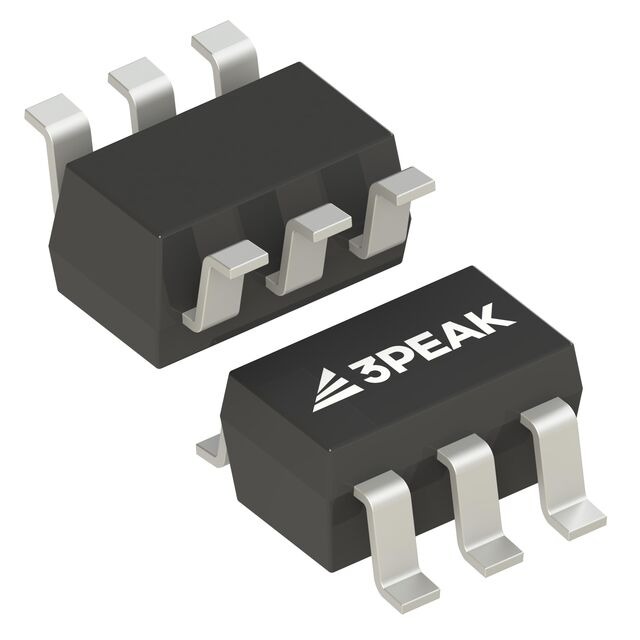

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
