Açıklama

ÖZELLİK	AÇIKLAMA

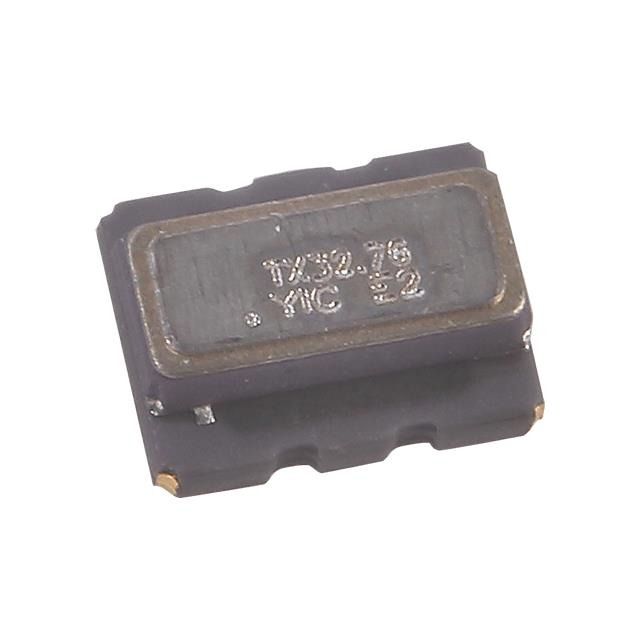

Mfr	YIC
Series	TX324TK
Packaging	Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Part Status	Active
Base Resonator	Crystal
Type	TCXO
Frequency	32.768 kHz
Function	Enable/Disable
Output	CMOS
Voltage – Supply	3.3V
Frequency Stability	±5ppm
Absolute Pull Range (APR)	–
Operating Temperature	-40°C ~ 85°C
Spread Spectrum Bandwidth	–
Current – Supply (Max)	1.5µA (Typ)
Ratings	–
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.129″ L x 0.098″ W (3.28mm x 2.50mm)
Height – Seated (Max)	0.055″ (1.40mm)
Current – Supply (Disable) (Max)	–
