Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | YAGEO |
| Series | YC248 |
| Packaging | Tape & Reel (TR), Cut Tape (CT) |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 56 |
| Tolerance | ±5% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | – |
| Number of Pins | 16 |
| Power Per Element | 62.5mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Applications | DDRAM, SDRAM |
| Mounting Type | Surface Mount |

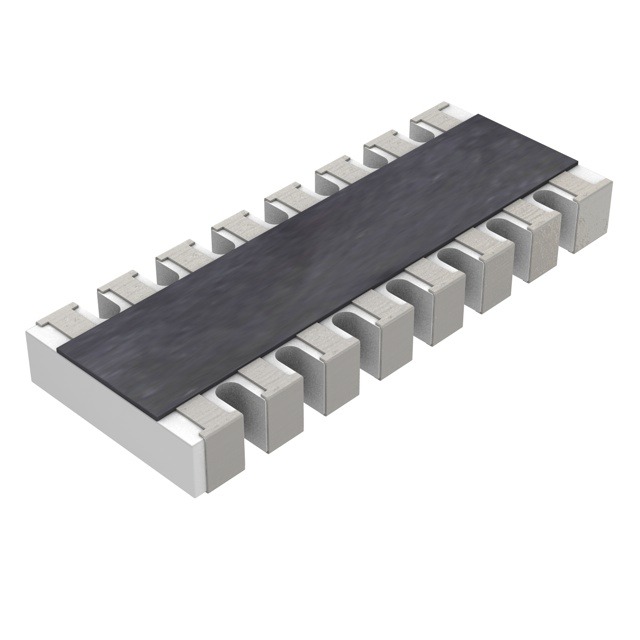

| Package / Case | 1606, Convex, Long Side Terminals |
| Supplier Device Package | – |
| Size / Dimension | 0.157″ L x 0.063″ W (4.00mm x 1.60mm) |
| Height – Seated (Max) | 0.022″ (0.55mm) |
| Base Product Number | YC248-JR |
