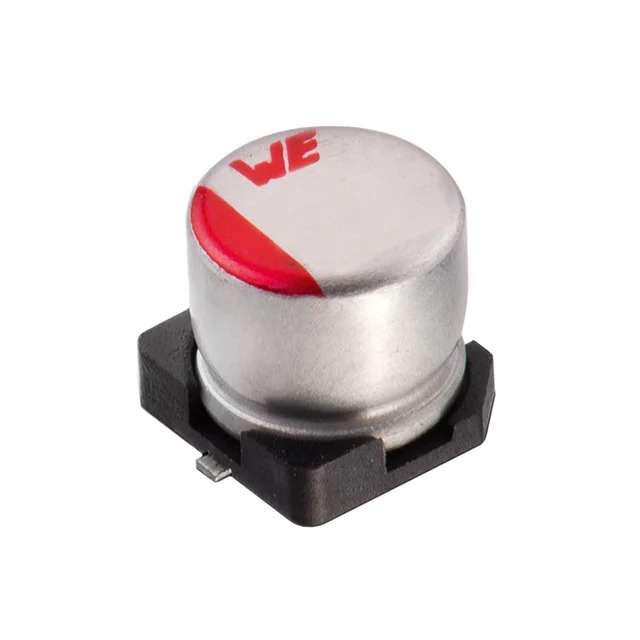

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Würth Elektronik |
| Series | WCAP-PSLP |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Polymer |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage – Rated | 16 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | – |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz |
| Lead Spacing | – |
| Size / Dimension | 0.197″ Dia (5.00mm) |
| Height – Seated (Max) | 0.228″ (5.80mm) |
| Surface Mount Land Size | 0.209″ L x 0.209″ W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can – SMD |
