| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | VPG Foil Resistors |
| Series | SMNZ |
| Packaging | Tray |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 10k |
| Tolerance | ±0.02% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | ±0.01% |
| Resistor-Ratio-Drift | ±1ppm/°C |
| Number of Pins | 8 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±0.2ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | – |
| Mounting Type | Surface Mount |

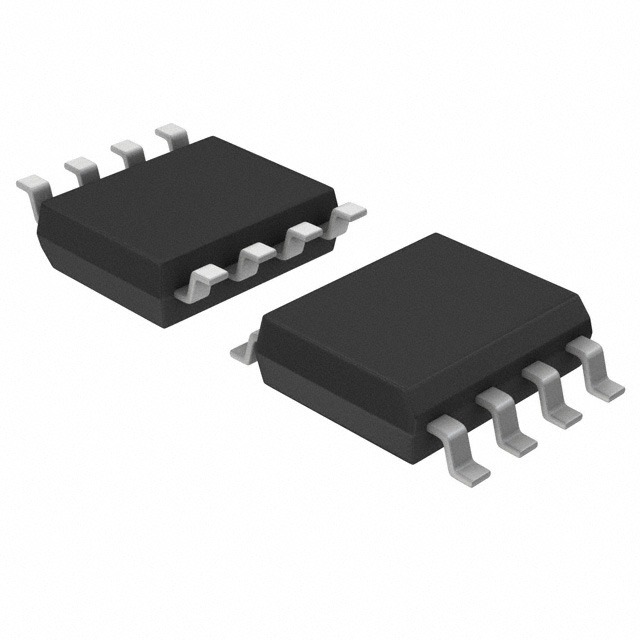

| Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | – |
| Size / Dimension | 0.197″ L x 0.157″ W (5.00mm x 3.99mm) |
| Height – Seated (Max) | 0.073″ (1.86mm) |
