Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

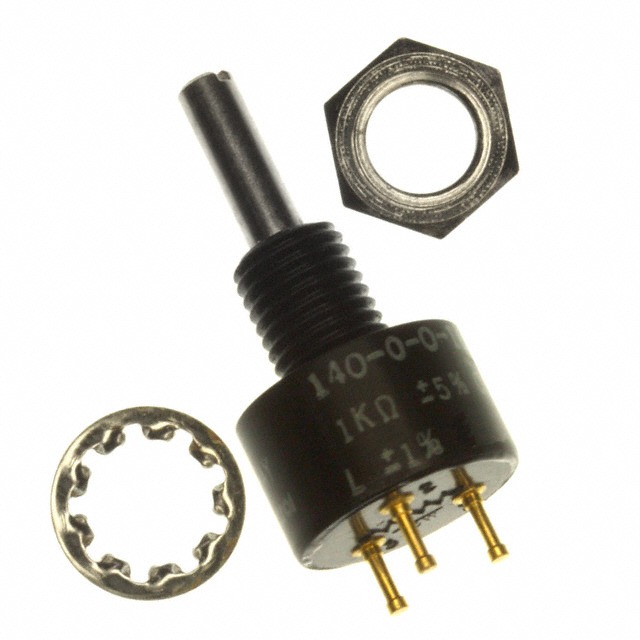

| Manufacturer | Vishay Spectrol |
| Series | 140 |
| Packaging | Bulk |
| Part Status | Active |
| Resistance (Ohms) | 1k |
| Tolerance | ±5% |
| Power (Watts) | 2W |
| Built in Switch | None |
| Number of Turns | 1.0 |
| Features | – |
| Taper | Linear |
| Number of Gangs | 1 |
| Adjustment Type | User Defined |
| Temperature Coefficient | ±20ppm/°C |
| Rotation | 330° |
| Resistive Material | Wirewound |
| Termination Style | Solder Turret |
| Actuator Type | Slotted |
| Actuator Length | 0.700″ (17.78mm) |
| Actuator Diameter | 0.1248″ (3.17mm) |
| Bushing Thread | 1/4-32 |
| Mounting Type | Panel Mount |
| Size – Body | Round – 0.500″ Dia (12.70mm) |
