Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Siliconix |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 96Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage – Supply, Single (V+) | 3V ~ 16V |
| Voltage – Supply, Dual (V±) | ±3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 46ns, 55ns |
| -3db Bandwidth | 700MHz |
| Charge Injection | -0.33pC |
| Channel Capacitance (CS(off), CD(off)) | 3.7pF, 4.4pF |
| Current – Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -62dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

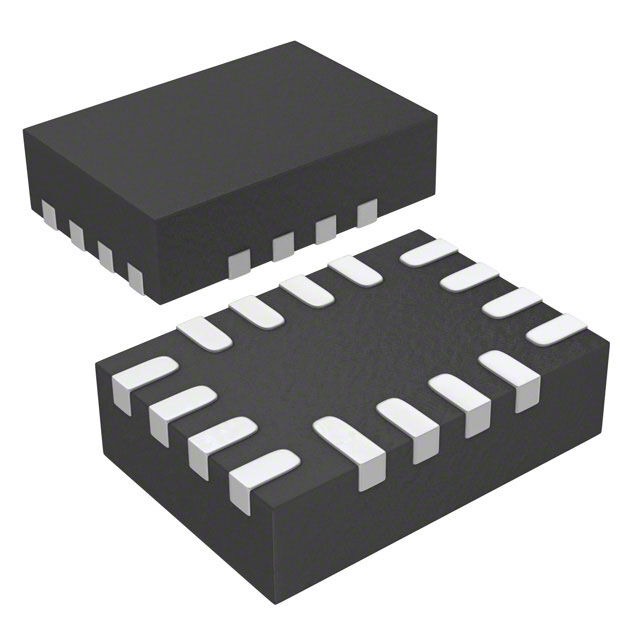

| Package / Case | 16-UFQFN |
| Supplier Device Package | 16-miniQFN (1.8×2.6) |
| Base Product Number | DG636 |
