Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Siliconix |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST – NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 5.3Ohm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm |
| Voltage – Supply, Single (V+) | 12V ~ 36V |
| Voltage – Supply, Dual (V±) | ±5V ~ 15V |
| Switch Time (Ton, Toff) (Max) | 118ns, 97ns |
| -3db Bandwidth | – |
| Charge Injection | 22pC |
| Channel Capacitance (CS(off), CD(off)) | 31pf, 34pF |
| Current – Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

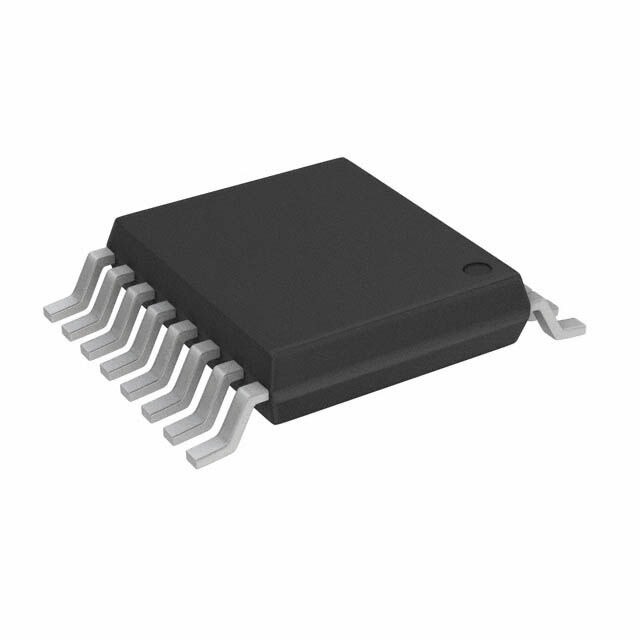

| Package / Case | 16-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | DG452 |
