Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Siliconix |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 45Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm (Max) |
| Voltage – Supply, Single (V+) | 7V ~ 36V |
| Voltage – Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 146ns, 104ns |
| -3db Bandwidth | – |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF |
| Current – Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

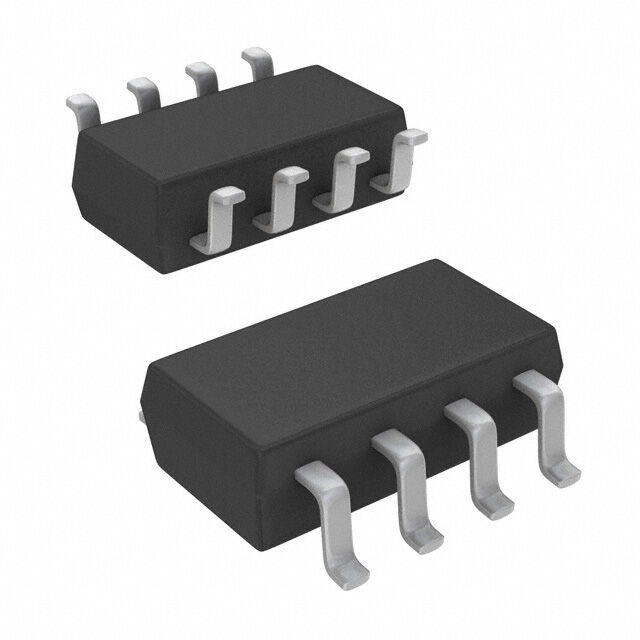

| Package / Case | SOT-23-8 |
| Supplier Device Package | SOT-23-8 |
| Base Product Number | DG449 |
