Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Siliconix |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | SPST – NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 85Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm (Max) |
| Voltage – Supply, Single (V+) | 12V |
| Voltage – Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 220ns, 120ns |
| -3db Bandwidth | – |
| Charge Injection | -1pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 4pF |
| Current – Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

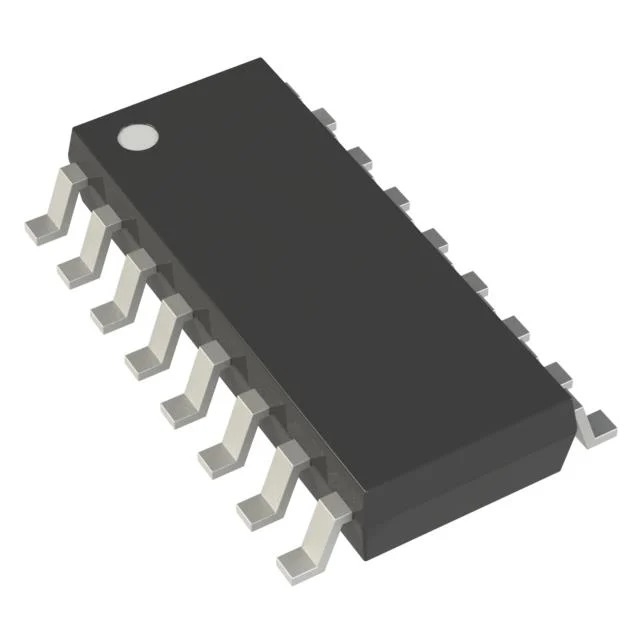

| Package / Case | 16-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | DG441 |
