Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Siliconix |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 1:2 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 18Ohm |
| Channel-to-Channel Matching (ΔRon) | – |
| Voltage – Supply, Single (V+) | 3V ~ 16V |
| Voltage – Supply, Dual (V±) | ±3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 40ns, 35ns |
| -3db Bandwidth | – |
| Charge Injection | 26pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 20pF |
| Current – Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -72dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

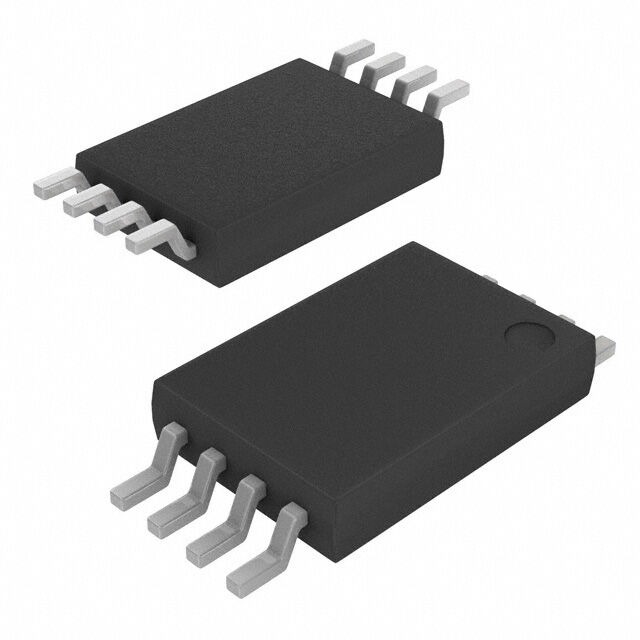

| Package / Case | 8-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | DG419 |
