Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Siliconix |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | – |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm (Max) |
| Voltage – Supply, Single (V+) | 5V ~ 36V |
| Voltage – Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | – |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 26pF |
| Current – Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | – |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

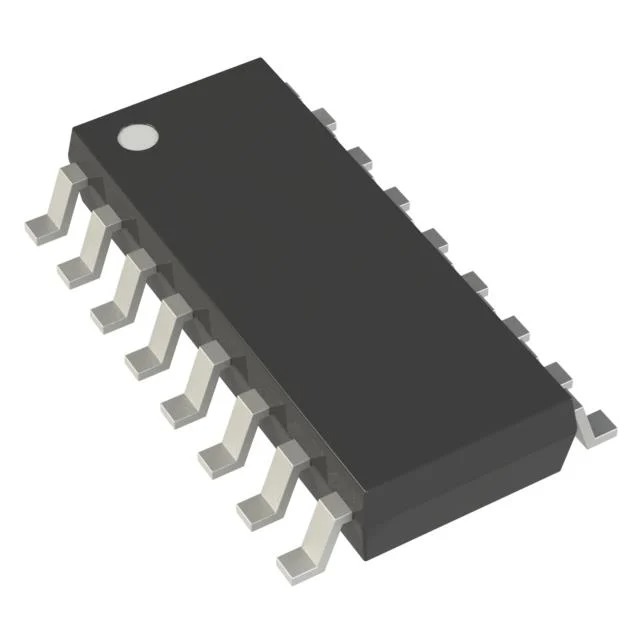

| Package / Case | 16-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | DG408 |
