Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Siliconix |
| Series | – |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Circuit | SPDT – NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 45Ohm |
| Channel-to-Channel Matching (ΔRon) | – |
| Voltage – Supply, Single (V+) | 13V ~ 36V |
| Voltage – Supply, Dual (V±) | ±7V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| -3db Bandwidth | – |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF |
| Current – Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |

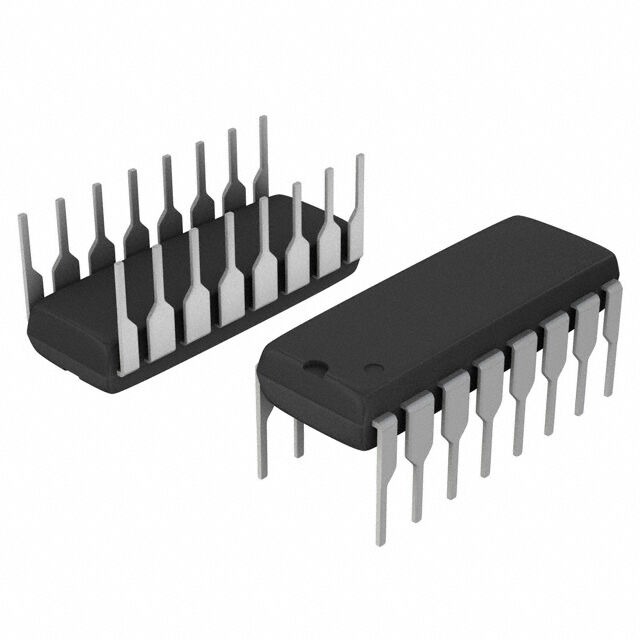

| Package / Case | 16-DIP (0.300″, 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | DG403 |
