Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Siliconix |
| Series | – |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Circuit | SPST – NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 85Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage – Supply, Single (V+) | 4.5V ~ 25V |
| Voltage – Supply, Dual (V±) | ±4.5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 300ns, 200ns |
| -3db Bandwidth | – |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current – Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -95dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |

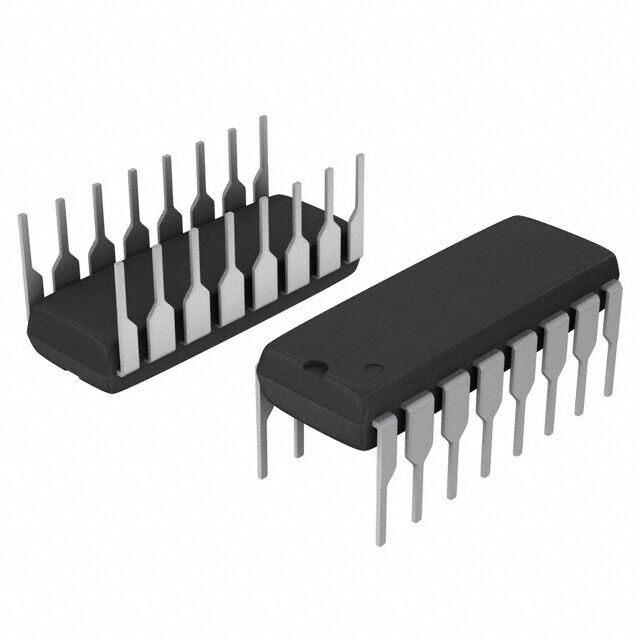

| Package / Case | 16-DIP (0.300″, 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | DG211 |
