Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Vishay Siliconix |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.6Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage – Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 32ns, 28ns |
| -3db Bandwidth | 160MHz |
| Charge Injection | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 16pF |
| Current – Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -63dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

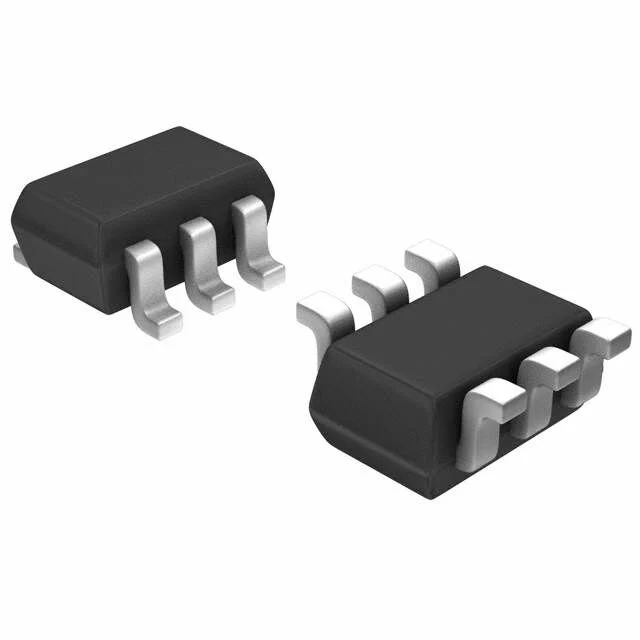

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Base Product Number | DG2012 |
