Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

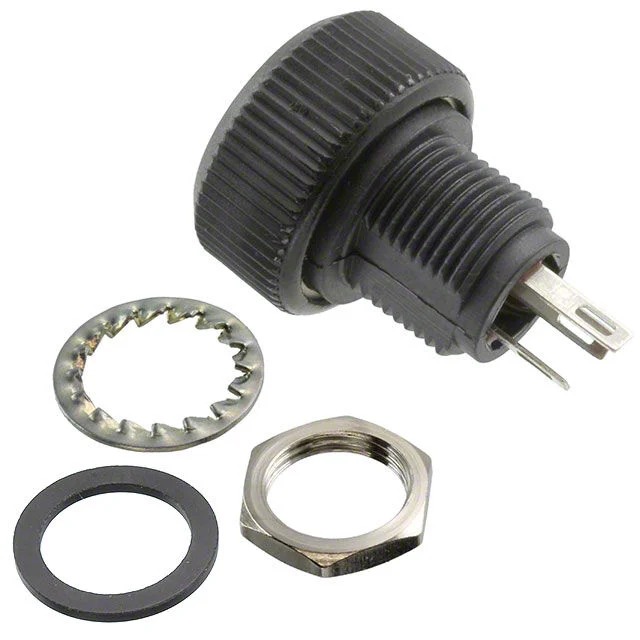

| Manufacturer | Vishay Sfernice |
| Series | P16 |
| Packaging | Bulk |
| Part Status | Active |
| Resistance (Ohms) | 4.7k |
| Tolerance | ±20% |
| Power (Watts) | 1W |
| Built in Switch | None |
| Number of Turns | 1.0 |
| Features | Sealed |
| Taper | Linear |
| Number of Gangs | 1 |
| Adjustment Type | User Defined |
| Temperature Coefficient | ±150ppm/°C |
| Rotation | 300° |
| Resistive Material | Cermet |
| Termination Style | Solder Lug |
| Actuator Type | Knob |
| Actuator Length | 0.346″ (8.80mm) |
| Actuator Diameter | 0.630″ (16.00mm) |
| Bushing Thread | M10 x 0.75 |
| Mounting Type | Panel Mount |
| Size – Body | Round – 0.630″ Dia (16.00mm) |
